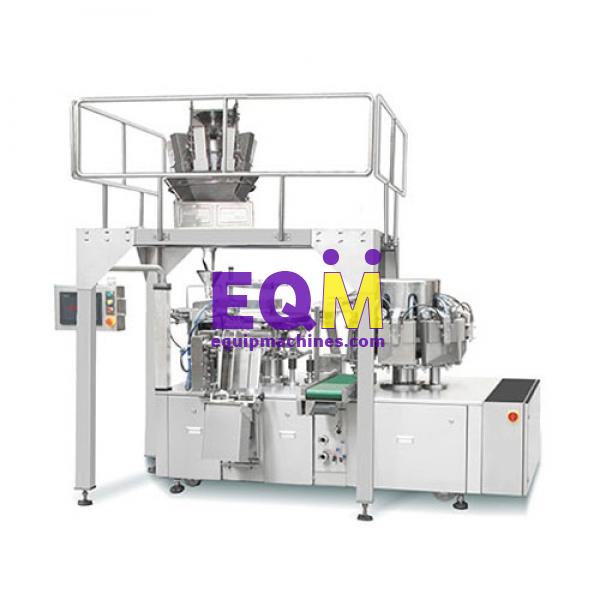

Automatic Nuts Vacuum Packaging Machines

Automatic Nuts Vacuum Packaging Machines

Bag Feeding
Date Coding+Bag Opening
Filling
Addling Liquid or tray vibrating
Forming
Empty
Bag Transferring
Empty Bag Cycling
Receiving Bag
Cover Closing
Vacuumize
Vacuumize
Heat Sealing
Cooling
Vacuum Breaking
Cover Opening and Bag Falling
Output
Electrical Appliance: Delta for standard Siemens or Omron for optional
Measuring Type: Multi-head Weigher
Bag Siz: W: 65?150mm L: 70?210mm??date coding requires≥ length140mm???
Filling Range: 5-500g
Packing Speed: 20?50Bags/min(depended on the product and filling weight)
Package Accuracy: ≤±1%(depended on the product features)
Weight: 2300kg
Dimension: 2476mm*1797mm*1661mm (L,W,H)
Total Power: 9.29kw
Driving Power Source: 380V Three-phase Five-line 50HZ
Control Power Source: DC24V
Compressed Air Requirement: ≤0.65m3/min(Compress air is provided by user) Working Pressure=0.5MPa
